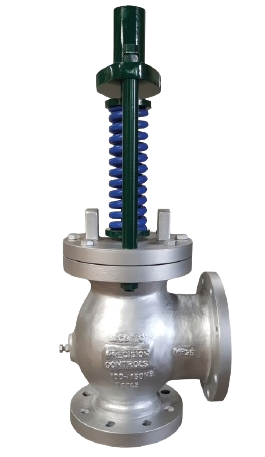

Pressure Relief Cast Steel Safety Valve

Headquarters: PureSys India &middot; PureVAL Division India 🇮🇳 (Pan-India Supply)
Sales &amp; Quotations: 📞 +91-9023703040 ✉ sales@pureval.in
Technical Service: 🛠 office@pureval.in
Working Hours: Mon – Sat: 9:00 AM – 6:30 PM IST

Name: PureVAL
Address: IN
Telephone: +91-9023703040
Price range: $$$

Standards: API 598 · ASME B16.34 · IBR

Design & Manufacturing Standards	API 600, API 6D, ASME B16.34, BS 5351, IBR 1950
Nominal Size Range	15 mm to 300 mm (1/2" to 12") · Custom bore on request
Pressure Class / Ratings	ANSI Class 150#, 300#, 600# · PN10, PN16, PN25, PN40
Body & Bonnet Materials	Cast Carbon Steel (WCB), Stainless Steel (CF8 / CF8M / SS316), Cast Iron, Forged Steel (A105)
Trim & Internal Materials	SS410, SS304, SS316, Stellite hardfaced, PTFE / RTFE / Graphite packing
End Connections	Flanged to ASME B16.5 RF/RTJ, Screwed BSP/NPT, Socket Weld (SW), Butt Weld (BW)
Testing & Inspection	100% Hydrostatic and Air Seat Leakage Test per API 598 / BS EN 12266-1
Applicable Media	Saturated Steam, Superheated Steam, Water, Oil, Hydrocarbons, Chemicals & Gas
Certifications	ISO 9001:2015, IBR Certificate (Form III-C), CE Marking, MSME

Material Traceability: All castings verified through chemical and mechanical spectrometry.
Zero Leakage Testing: Pressure tested prior to dispatch under third-party or in-house QA protocols.
Indian Boiler Regulations (IBR): Available with authentic IBR Form III-C certification for boiler lines.

Need Pricing or Technical Drawings for this Product?
